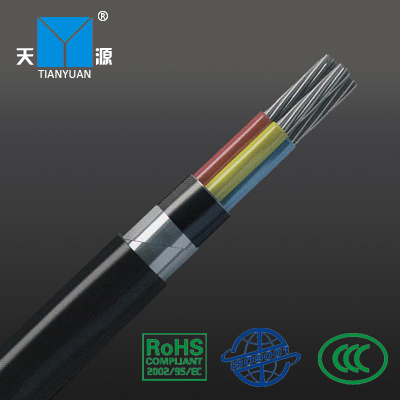

点击图片查看原图
|
导体标称直径 |
绝缘厚度 |
钢带厚度 |
护套厚度 |
电缆近似外径 |
电缆近似重量 |
20℃导体电阻 |
试验电压 |
||
|
20℃≤(Ω/km) |
|||||||||
|
铝 |
铝 |
|
|||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
KV/min |
|
|
3×4+1×2.5 |
1.0 |
0.8 |
2×0.2 |
1.8 |
17.9 |
446 |
7.41 |
12.1 |
3.5 |
|
3×6+1×4 |
1.0 |
1.0 |
2×0.2 |
1.8 |
19.5 |
524 |
4.61 |
7.41 |
3.5 |
|
3×10+1×6 |
1.0 |
1.0 |
2×0.2 |
1.8 |
22.1 |
619 |
3.02 |
4.61 |
3.5 |
|
3×16+1×10 |
1.0 |
1.0 |
2×0.2 |
1.8 |
24.7 |
804 |
1.91 |
3.02 |
3.5 |
|
3×25+1×16 |
1.2 |
1.0 |
2×0.2 |
1.8 |
28.5 |
1072 |
1.20 |
1.91 |
3.5 |
|
3×35+1×16 |
1.2 |
1.0 |
2×0.2 |
1.8 |
31.7 |
1458 |
1.868 |
1.91 |
3.5 |
|
3×50+1×25 |
1.4 |
1.2 |
2×0.5 |
2.0 |
35.0 |
1723 |
0.641 |
1.20 |
3.5 |
|
3×70+1×35 |
1.4 |
1.2 |
2×0.5 |
2.1 |
38.5 |
2077 |
0.443 |
0.868 |
3.5 |
|
3×95+1×50 |
1.6 |
1.4 |
2×0.5 |
2.3 |
44.3 |
2636 |
0.320 |
0.641 |
3.5 |
|
3×120+1×70 |
1.6 |
1.4 |
2×0.5 |
2.4 |
49.0 |
3139 |
0.253 |
0.443 |
3.5 |
|
3×150+1×70 |
1.8 |
1.4 |
2×0.5 |
2.5 |
53.5 |
3673 |
0.206 |
0.320 |
3.5 |
|
3×185+1×95 |
2.0 |
1.6 |
2×0.5 |
2.7 |
58.9 |
4408 |
0.164 |
0.253 |
3.5 |
|
3×240+1×120 |
2.2 |
1.6 |
2×0.5 |
2.9 |
60.6 |
5216 |
0.125 |
0.206 |
3.5 |
|
3×300+1×150 |
2.4 |
1.8 |
2×0.5 |
3.1 |
65.6 |
6145 |
0.100 |
0.164 |
3.5 |
|
3×400+1×240 |
2.4 |
1.8 |
2×0.5 |
3.3 |
72.8 |
7812 |
0.0778 |
0.125 |
3.5 |
|
3×4+2×2.5 |
1.0 |
0.8 |
2×0.2 |
1.8 |
18.8 |
491 |
7.41 |
12.1 |
3.5 |
|
3×6+2×4 |
1.0 |
1.0 |
2×0.2 |
1.8 |
20.7 |
570 |
4.61 |
7.41 |
3.5 |
|
3×10+2×6 |
1.0 |
1.0 |
2×0.2 |
1.8 |
23.3 |
702 |
3.02 |
4.61 |
3.5 |
|
3×16+2×10 |
1.0 |
1.0 |
2×0.2 |
1.8 |
26.3 |
853 |
1.91 |
3.02 |
3.5 |
|
3×25+2×16 |
1.2 |
1.0 |
2×0.2 |
1.8 |
31.5 |
1287 |
1.20 |
1.91 |
3.5 |
|
3×35+2×16 |
1.2 |
1.0 |
2×0.2 |
1.9 |
33.6 |
1402 |
1.868 |
1.91 |
3.5 |
|
3×50+2×25 |
1.4 |
1.2 |
2×0.5 |
2.1 |
38.4 |
2080 |
0.641 |
1.20 |
3.5 |
|
3×70+2×35 |
1.4 |
1.2 |
2×0.5 |
2.2 |
42.6 |
2542 |
0.443 |
0.868 |
3.5 |
|
3×95+2×50 |
1.6 |
1.4 |
2×0.5 |
2.4 |
48.5 |
2348 |
0.320 |
0.641 |
3.5 |
|
3×120+2×70 |
1.6 |
1.4 |
2×0.5 |
2.5 |
53.4 |
3897 |
0.253 |
0.443 |
3.5 |
|
3×150+2×70 |
1.8 |
1.4 |
2×0.5 |
2.6 |
57.2 |
4438 |
0.206 |
0.320 |
3.5 |
|
3×185+2×95 |
2.0 |
1.6 |
2×0.5 |
2.8 |
63.9 |
5441 |
0.164 |
0.253 |
3.5 |
|
3×240+2×120 |
2.2 |
1.6 |
2×0.5 |
3.0 |
71.4 |
6689 |
0.125 |
0.206 |
3.5 |
|
3×300+2×150 |
2.4 |
1.8 |
2×0.5 |
3.2 |
79.3 |
7948 |
0.100 |
0.164 |
3.5 |
|
3×400+2×240 |
2.4 |
1.8 |
2×0.5 |
3.4 |
86.7 |
9366 |
0.0778 |
0.125 |
3.5 |
|
4×4+1×2.5 |
1.0 |
0.8 |
2×0.2 |
1.8 |
19.2 |
498 |
7.41 |
12.1 |
3.5 |
|
4×6+1×4 |
1.0 |
1.0 |
2×0.2 |
1.8 |
20.8 |
589 |
4.61 |
7.41 |
3.5 |
|
4×10+1×6 |
1.0 |
1.0 |
2×0.2 |
1.8 |
23.9 |
756 |
3.02 |
4.61 |
3.5 |
|
4×16+1×10 |
1.0 |
1.0 |
2×0.2 |
1.8 |
26.9 |
952 |
1.91 |
3.02 |
3.5 |
|
4×25+1×16 |
1.2 |
1.0 |
2×0.2 |
1.8 |
32.4 |
1477 |
1.20 |
1.91 |
3.5 |
|
4×35+1×16 |
1.2 |
1.0 |
2×0.2 |
1.9 |
35.1 |
1731 |
1.868 |
1.91 |
3.5 |
|
4×50+1×25 |
1.4 |
1.2 |
2×0.5 |
2.1 |
39.7 |
1827 |
0.641 |
1.20 |
3.5 |
|
4×70+1×35 |
1.4 |
1.2 |
2×0.5 |
2.3 |
44.0 |
2734 |
0.443 |
0.868 |
3.5 |
|
4×95+1×50 |
1.6 |
1.4 |
2×0.5 |
2.4 |
50.2 |
3491 |
0.320 |
0.641 |
3.5 |
|
4×120+1×70 |
1.6 |
1.4 |
2×0.5 |
2.6 |
55.1 |
4145 |
0.253 |
0.443 |
3.5 |
|
4×150+1×70 |
1.8 |
1.4 |
2×0.5 |
2.7 |
59.9 |
4882 |
0.206 |
0.320 |
3.5 |
|
4×185+1×95 |
2.0 |
1.6 |
2×0.5 |
2.9 |
66.5 |
5899 |
0.164 |
0.253 |
3.5 |
|
4×240+1×120 |
2.2 |
1.6 |
2×0.5 |
3.1 |
74.3 |
7395 |
0.125 |
0.206 |
3.5 |
|
4×300+1×150 |
2.4 |
1.6 |
2×0.5 |
3.3 |
80.1 |
8891 |
0.100 |
0.164 |
3.5 |
|
4×400+1×240 |
2.4 |
1.6 |
2×0.5 |
3.6 |
88.2 |
9986 |
0.0778 |
0.125 |
3.5 |
